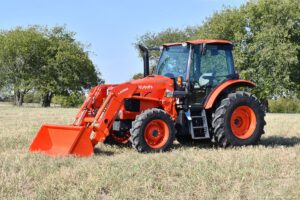

New Kubota M6S-111SHDC Tractor
New Kubota M6S-111SHDC Tractor


New Kubota M6S-111SHDC Tractor

Get more done on your hay and cattle operation with this powerful tractor. With technology-driven engine features, an ergonomic operator station, smooth-shifting transmission and high-performance hydraulics, the M6S-111SHDC is one specialty model built to accomplish a wide variety of jobs.

Technoloy Driven Engine Features

The M6S has a V-3800-TierIV final engine which has a common rail fuel system, intercooler, exhaust gas recirculation. Employment of a diesel particulate filter and a selective catalytic reduction for minimized emissions. Additionally, it has Constant RPM management memory to minimize repetitive actions.

Ergonomic Operator Station

To increase operator efficiency the design of the main shift lever provides a comfortable, easy-to-use feel and better visibility of the lever’s shift stages, Hi-Lo, etc. Furthermore, the loader joystick operates with exceptional smoothness and responsiveness.

F16/R16 Transmission

Kubota “Swing Shift” provides you access to 16 speeds. The synchronized main shift “H” pattern puts four speeds immediately at your disposal. The Swing Shift adds to that by actuating the electricover – hydraulic high/low synchronized range shift for a total of eight speeds – all controlled by a single lever. If a task requires more than eight speeds, simply move the auxiliary range lever left of the seat for eight more to equal 16F/16R. An optional creep provides eight additional slower speeds. That’s 24 speed enough for the most demanding and precise work.

F32/R32 Transmission (Factory option)

Swing Shift Plus models give you 32F/32R speeds, and allow you to operate the Swing Shift as well as the Dual speed with just one lever. Put this feature to best use when taking large load increases, working in mixed soil or during hay tool applications. An optional creep provides 16 additional slower speeds – a total of 48F/48R– for specialty applications.

De-clutch Button On Main Shift Lever

The de-clutch button is available on all CAB models. This feature allows you to shift a gear without using the clutch pedal. While pressing the de-clutch button, the clutch is disengaged. When the de-clutch button is released, the clutch is engaged.

High Performance Hydraulics

The M6S CAB now has two standard rear remote valves. It offers one self-cancelling detent valve and one floating detent valve. With 17.2 GPM flow and an optional third remote valve, this tractor is ready to accept implements requiring multiple valves.

Other Features

  • Electro Hydraulic Shuttle
  • Steering tilt angle up to 41 degrees



Engine Manufacturer
Engine Type
V-3800-CR-Tier F4
Gross: 114 hp (85.1 kW); Net: 105 hp (78.2 kW)
95 hp (70.8 kW)
Rated RPM
2600 rpm


95.9 in. (2435 mm)
106 in. (2680 mm)
92 in. (2350 mm)
8973 lb. (4070 kg)
Ground Clearance
16.9 in. (430 mm)
Tire Size
Front: 13.6-24; Rear: 18.4-34 Cast


Fuel Capacity
46.2 gal. (175 L)
F16 R16
Hydraulically operated wet brakes
17.2 gpm (65 Lpm)
Drive Type


  • Registration date:
  • Condition: New
  • Fuel: Diesel
  • Drive: 4WD
