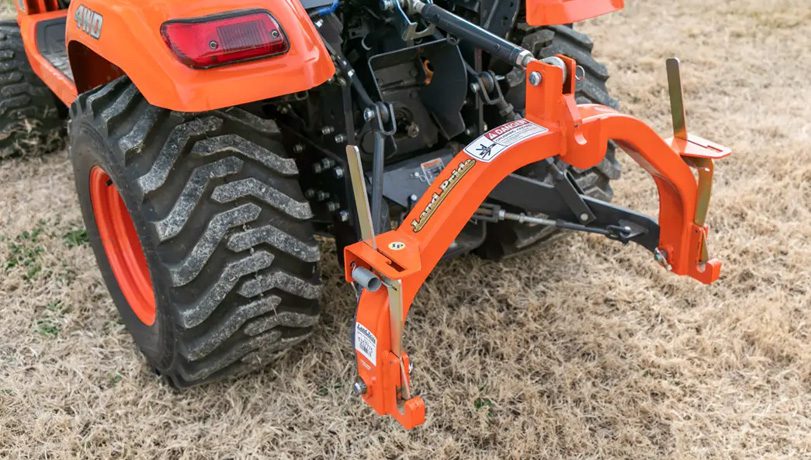

Land Pride’s new QH05 Quick Hitch is specifically engineered for sub-compact tractors. The QH05 allows you to quickly connect to or disconnect from over 20 Land Pride products – most without leaving the tractor seat. Owners of sub-compact tractors will find that the Land Pride QH05 speeds implement changes, allowing more time to get chores completed.

Available Models

QH05

Description

Land Pride’s new QH05 Quick Hitch is specifically engineered for sub-compact tractors. The QH05 allows you to quickly connect to or disconnect from over 20 Land Pride products – most without leaving the tractor seat. Owners of sub-compact tractors will find that the Land Pride QH05 speeds implement changes, allowing more time to get chores completed.

Manufactured from 2″ x 3″ x 3/16″ steel tubing, the QH05 is designed and rated for implements weighing less than 700 lbs., 24″ from the hitch.* Automatic locks on the lower 3-point arms make hook-up a breeze. Spring-loaded levers make unlocking the lower pin equally as easy and can be done from the tractor seat most of the time. The optional floating top link is required for Land Pride implements with a swiveling top hitch to keep it from binding when going through ditches or other undulations.

Weighing less than 40 lbs., the QH05 is simple to install and even easier to use. After installation on your sub-compact tractor, simply line the QH05 up with the Cat 1 hitch on your implement, making sure that the hitch is lower than the implement hitch, and back up. Once the hooks are centered below the pins, raise your 3-point arms. The lower pins automatically lock in place, securing the implement to the tractor.

*Indicates a S/N break designated for QH05. Reference product page for details.
Compatible Products

•BB05 Series Box Scrapers
•BB12 Series Box Scrapers
•BB15 Series Box Scrapers
•CA15 Series Core Aerators
•DH10 Series Disc Harrows
•FDR16 Series Grooming Mowers
•GS15 Series Grading Scrapers
•LR16 Series Landscape Rakes*
•RB15 Series Rear Blades*
•RB16 Series Rear Blades*
•RCR12 Series Rotary Cutters
•RCR15 Series Rotary Cutters
•RTA12 Series Rotary Tillers
•RTA15 Series Rotary Tillers
•RTR05 Series Rotary Tillers
•RTR12 Series Rotary Tillers
•RTR15 Series Rotary Tillers
•SB10 Series Snow Blowers (S/N 881641+)
•SBR Series Seed Bed Rollers
•SP20 Series Soil Pulverizers
•STH15 Series Spike Tooth Harrows
•WC1503 Wood Chippers*
