Description

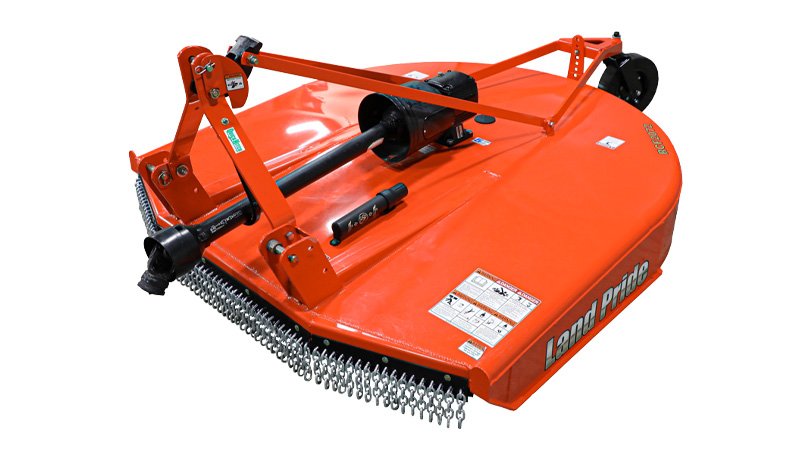

New Land Pride RCF2060 & RCF2072 Series Rotary Cutters
The RCF20 Series features a smooth top for easier cleaning and a floating top link for following ground undulations in grass, weeds, and light brush up to 2″ in diameter. The RCF20 is ideal for rural acreage or farm grass maintenance.
Available Models
RCF2060, RCF2072
Description
The RCF20 Series features a smooth top for easier cleaning and a floating top link for following ground undulations in grass, weeds, and light brush up to 2″ in diameter. The RCF20 is ideal for rural acreage or farm grass maintenance. The 60″ or 72″ cutting widths are compatible with the more maneuverable 20 to 65 horsepower tractors with 540 RPM PTO speed. These cutters have a Category I 3-Point hitch that are Quick Hitch adaptable. The standard ASAE Category III driveline is offered with either shear bolt or slip-clutch protection and the tailwheel is offered laminated or solid rubber.
Features and Benefits
| FEATURES | BENEFITS |
|---|---|
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI. |
| 5 Year gearbox warranty | Shows our confidence in the gearbox integrity. |
| Gearbox Seal Protection | Gearbox bottom seal protection for longer bearing life. |
| Cat. 3 driveline with shear-bolt Option | Shear-bolt offers maximum driveline protection. |
| Cat. 3 driveline with 2-plate slip-clutch Option | Slip-clutch driveline offers convenience for continual work. |
| Dual position clevis type 3-Point floating top link | Permits deck to follow the terrain for an even cut. |
| Lower clevis type 3-Point hitch | Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even pull from the tractor’s lower arms, vs. pulling on a single pin design. |
| Heavy 10 gauge deck & side skirt construction | Can withstand more abuse than lighter gauge decks. |
| Box tubing deck supports | Makes for a stronger rigid deck. |
| Fully welded deck | Adds additional strength. |
| Extended cutter front | For increased material flow and added protection. |
| Round back design | Helps discharge grass better than enclosed or partially enclosed cutters. |
| Deck Height | 9 11/16” Deck height on 60” and 11” deck height on 72” model Allows cutter to handle heavy cutting conditions. |
| 1 1/2” to 12” Cutting height | Provides for a wide range of cutting conditions. |
| Full length skid shoes | Provides sidewall reinforcement and full protection to bottom of sidewall. |
| 1/2” x 3” Heat-treated free swinging blades | Free swinging protects from obstructions. Heat-treated offers longer life. |
| Splined blade bar hub | Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft. |
| 10 Gauge stump jumper | Standard round stump jumper slides over stumps, rocks and debris. |
| High blade tip speed | Ensures clean cut. |
| 15” Laminated tailwheel | Laminated material is long lasting in rough conditions. Can’t go flat. |
| 4” x 16” Solid rubber tailwheel | Can’t go flat. |
| 1 1/4” Heavy-duty spindle on tailwheel | Tailwheels take a beating, spindle gives the strength to protect tailwheel assembly. |
| Optional Guarding | Protect against flying debris. Customer can choose to include single chain or rubber guarding on the front and back. Rear Metal Band standard on the back. |
Specifications
- Registration date: 2015
- Condition: New
- Fuel: Electric
- Drive: AWD
