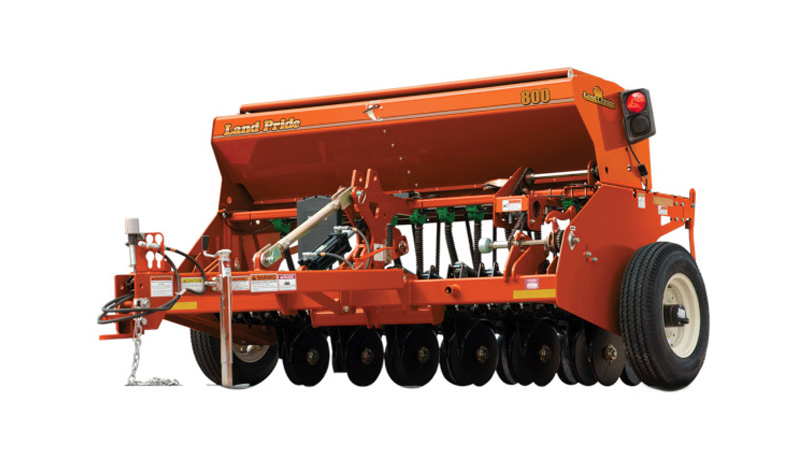

New Land Pride 800 Series Compact Drills
45 HP min
Available Models
800
Description
Land Pride’s 800 Series End-Wheel Min-Till Drill uses the field-proven 00 Series opener to properly and accurately place seeds. This rugged opener utilizes 13.5″ diameter and 4mm thick disk blades, full-length seed tube and an 18-position T-handle press wheel to precisely control seed depth. Due to its central location, adjusting the down pressure on the 5-position opener is quick and easy. Other features include a lock-out hub to free wheel the drive system during transport, “V” bottom dividers for easy clean out, and folding tongue as standard equipment.
Features and Benefits
| FEATURES | BENEFITS |
|---|---|
| Choice of 2×13 Single Press Wheel or 3×13 Center Rib Press Wheel | Press wheel options allow tailoring to various soil conditions. |
| 4 Speed Gearbox for various seed rates | Makes seed rates changes quick and painless. |
| Acremeter | Indicates the acres planted. |
| Walkboard & Ladder | Allows you to refill seed from end to end. |
| Lock-out Hub | Disengages all drive components for reduce wear on drive system. |
| V-bottom Dividers | Allows all the seed to feed from the seed box to the feeder cup so you get complete emptying. |
| Seed Box Level Indicator seed | Easy to read from the tractors seat and indicates the amount of left. |
| Folding Tongue | Less storage room required. |
| Calibration Crank | Calibrating your machine will allow you to put on only the amount of seed you desire. |
| Safety Chain | Prevents unit to come loose from towing vehicle. |
| T-handle Depth Control Adjustment | Provides 18 different positions for accurate depth. |
| 2 bu/ft Seedbox | Larger box reduces downtime / more acres per fill. |
Specifications
- Registration date: 2015
- Condition: New
- Fuel: Electric
- Drive: AWD
