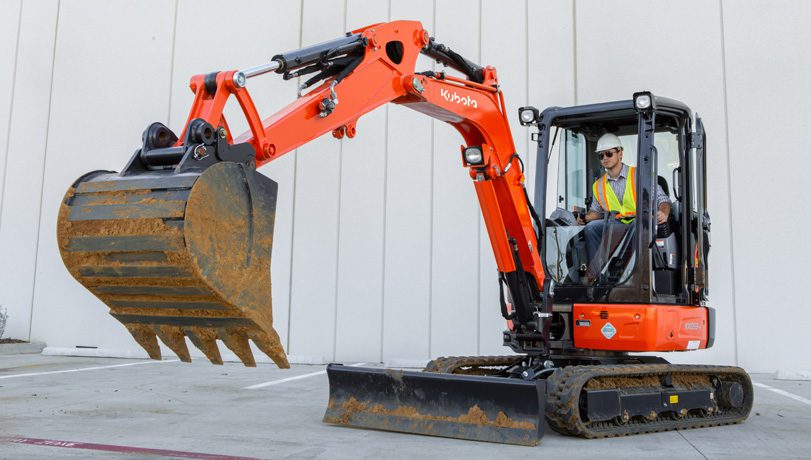

New Kubota KX033-4 Excavator

Description

New Kubota KX033-4 Excavator

Aux1 Diverter Valve

The diverter valve allows auxiliary oil to be diverted to the operation of auxiliary attachments without removal of the

thumb attachment pipeline for increased efficiency on the go.

Strong Bucket Breakout Force

When heavily loaded, the KX033-4’s outstanding bucket breakout force lets you handle even the toughest

excavating jobs with speed and efficiency.

Wide Working Range

The KX033-4’s powerful and responsive front working group gives you the confidence to handle a wide range of

digging, lifting, and loading jobs. The low center of gravity with the double flanged track rollers provide efficient

operation when working to the side or lifting heavy objects.

Hydraulic Angle Blade (Optional)

Save time and work more efficiently. With a simple movement of the new

thumb operated rocker switch on the dozer lever, the hydraulic angle

blade can be angled to the right or left to push soil to the side as the

machine moves forward, eliminating the need for repetitive repositioning

at right angles when backfilling trenches.



Hydraulic Angle Blade (Optional)

Float Position

The float function is a standard feature on the KX033-4*. Ground

finishing work can be completed quickly and simply without the need

to adjust the dozer height. After backfilling, simply travel backwards

along the covered ditch with the dozer in the float position.

*Standard on both angle blade & straight blade models.

Easy Operation

Angle blade operation has been enhanced for easier control. Up, down

and float movements are made with a single lever, while left and right

angle positioning is made by the rocker switch on top of the lever.

Generous Approach Angle

Navigate ramps and over obstacles with confidence – Kubota’s angle

blade has a 32 degree approach angle.

Tight Spots

The angle blade lets you work efficiently in confined spaces, alongside

walls, and near busy roads. No wider than the tracks, it’s also easy to

transport between jobs.

Easy-Open Front Slide Window

Unlike many excavator windows, the front glass window of the KX033-4

opens with ease. Just flip the latches on the window sides and slide it

up. A gas-assist mechanism makes this action almost effortless.



Wider Entrance

The KX033-4 features a much wider door and more ample foot space,

making it a breeze to get on and off the excavator.

Deluxe Suspension Seat

Kubota’s high back suspension seat has been designed for maximum

operator comfort and to minimize fatigue during extended machine

operation. The deluxe reclining seat offers weight compensation, firm

adjustable wrist support and retractable seat belts.

2-Speed Travel Switch

Kubota’s high back suspension seat has been designed for maximum

operator comfort and to minimize fatigue during extended machine

operation. The deluxe reclining seat offers weight compensation, firm

adjustable wrist support and retractable seat belts.

Cup Holder

With the convenience of a bigger cup holder, you can quench your thirst and work longer without leaving the cab.

Or store your cell phone*. The charging port is located conveniently close by.

*Cell phones should not be used during machine operation.



Wrist Rest

A thoughtfully designed wrist rest enhances operation and reduces operator fatigue.

Air Conditioning

Enhanced air circulation in the cab results from a more powerful cooling/

heating unit and six vents positioned around the operator to offer optimal

all weather comfort.

TPSS

Operators can select the ISO pattern or SAE backhoe pattern by turning a switch positioned within easy reach

while seated.

Kubota Original Direct Injection Engine

The KX033-4 is powered by Kubota’s impressive direct injection engine.

Engineered with the power to maximize digging and lifting performance, it

also delivers minimized noise, vibration and fuel consumption, and is as

well a non-DOC/DPF Tier 4 Final certified engine.



Proportional Flow Control of Auxiliary Circuit (AUX1)

and Maximum Oil Flow Setting

Now you can conveniently program up to five different oil flow rates for specific attachments on the new

digital control panel. No tools or manual adjustment is required. And, with a maximum AUX 1 circuit oil flow

now up to 15.8 GPM (60 liters) you can operate a larger variety of auxiliary attachments than ever before.

Third-Line Hydraulic Return

A standard third-line hydraulic return system allows oil return directly to the tank without running through the

control valves during operation of one-way hydraulic attachments. This decreases the likelihood of oil

contamination, and results in less back pressure and greater oil flow efficiency.

Auto-Shift

The KX033-4 auto-shift automatically shifts travel speed from high to low, depending on traction and terrain,

allowing smoother operation when dozing and turning.

Auto Idling System

When KX033-4 control levers are in neutral for more than 4 seconds, engine RPM automatically idles. Move any

control lever, and engine RPM immediately returns. This innovative feature not only lowers noise and exhaust

emissions, but also reduces operating cost and fuel consumption. It can be turned on and off.

Swivel Negative Brake

The swivel negative brake automatically locks the swivel function in its current position. This prevents

unexpected machine movement. It’s particularly useful during work on slopes or when towing the excavator

between worksites.



Large-Capacity Variable Displacement Pump

The KX033-4’s performance matched boom, arm and bucket movements are the best in the industry.

Kubota’s unique hydraulic system and large-capacity variable displacement pumps give you the precise

control needed to operate smoothly and efficiently in confined quarters. With the hydraulic power harnessed

in the KX033-4’s front working group superior digging force is available when you need it.

Front Bush Pins

Bushings on all pivot points on the front attachment and connecting points on the swing bracket is one more

feature that adds to the enviable durability of this machine.

Travel Negative Brake

The travel negative brake locks the tracks to prevent inadvertent movement of the machine. This keeps the

excavator secure during transport or while parked on slopes.

Easy Maintenance

Kubota’s attention to user-friendliness can even be found in KX033-4’s

engine layout. Primary engine components are consolidated onto one side

for easier access so inspections and repairs can be made quickly and

easily.

A. Dual Element Air Cleaner

B. Water Separator

C. Fuel Filter

D. Starter Motor

E. Alternator

Fully opening rear and right side hoods and easily accessible engine, control valves, and other components

simplify maintenance and repair tasks to help keep your KX033-4 in peak operating condition.

Steel Panels

Durable steel side panels open easily for quick inspection and routine maintenance. Positioning inside the

counterweight’s edge gives panels added protection against inadvertent damage.

Accumulator

The accumulator helps to change hydraulically driven attachments by clearing residual pressure in the

hydraulic lines. It also helps to lower front attachments to the ground if the engine is turned off. Both can be

done without restarting the engine. Please see the operator’s manual for more information.



Digital Panel

With easy access, simple settings, and easy-to-read indicators and

alerts, you’ll always be aware of the status of your excavator’s critical

functions. The wider, more visible display screen with easy push button

operation puts convenience at the operator’s fingertips. Part of Kubota’s

Intelligent Control System, the digital panel provides a wealth of user friendly

information to help keep the KX033-4 working safely and

efficiently.

Operation History Record

Operation history is automatically recorded on the KX033-4. You can trace

back up to 90 days of the machine’s usage dates by simply checking the

built-in calendar.

KX033-4 OPTIONS

STANDARD EQUIPMENT

Safety system

Engine start safety system

Travel motor with disc brake

Swivel motor with disc brake

All hydraulic control

Working equipment

Auxiliary hydraulic circuit 1 with proportional

control on right control lever

2 working lights on cab and 1 light on the boom

Dozer blade with float function

Thumb bracket and relief valve

Operator’s space

ROPS/OPG (TOP Guard, Level I) canopy

Weight-adjustable full suspension seat

Retractable seat belt

Hydraulic pilot control levers with wrist rests

Travel levers with foot pedals

Two pattern selection system

Digital panel with diagnosis function

12V power source

Cup holder

Horn

Engine/Fuel system

Double element air filter

Auto idling system

Water separator with drain cock



Undercarriage

11.8″ (300mm) rubber track

1 x upper track roller

5 double-flange track rollers on each side

2-speed travel switch on dozer lever

2-speed travel with auto-shift

Hydraulic system

Pressure accumulator

Hydraulic pressure checking ports

Straight travel circuit

Third line hydraulic return

2 variable pumps and 1 gear pump

Five adjustable AUX presets for precise

auxiliary oil flow requirements

Auxiliary switch (AUX1) on right control lever

Others

Tool box

Grease gun holder

OPTIONAL EQUIPMENT

Cab with A/C

Canopy lights

Rear working lights

Beacon lights

Angle blade with float function and BOE

Travel alarm

Spark arrest muffler

Specifications

  • Registration date:
  • Condition: New
  • Fuel: Diesel
