Description

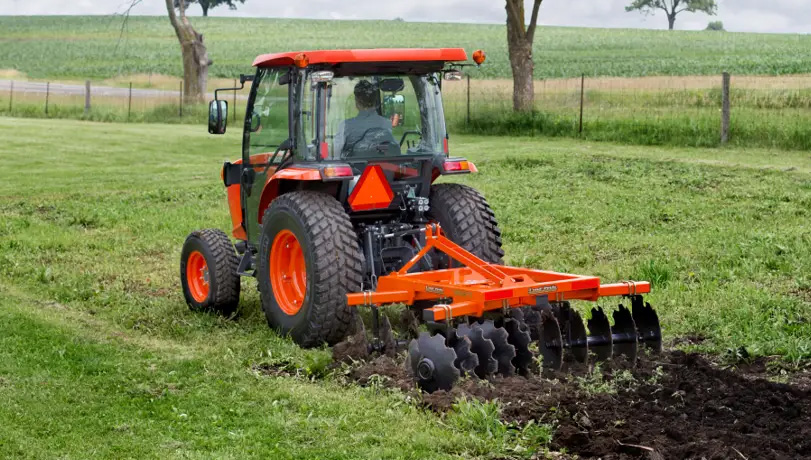

New Land Pride DH25 Series Disc Harrows
40-100 HP
Available Models
DH2572, DH2596
Description
Land Pride’s DH25 Series Disc Harrows breakup and redistribute the soil surface in preparation of seedbed and field planting operations. Disc gangs can be ordered with smooth or notched disc gang arrays for lighter or more aggressive applications and this series does offer 20″ diameter or larger 22″ diameter discs to meet specific customer needs. The DH25 Series Disc Harrows have applications in commercial landscaping, construction, farms, ranches, and municipal maintenance programs, and can be used in conjunction with Land Pride’s seeding package — Seed Bed Roller, Electric Spin Spreader, and Drag Harrow.
Features and Benefits
| FEATURES | BENEFITS |
|---|---|
| Cat. 1 & 2 3-point hitch | Fits a wide variety of tractors. |
| Quick-Hitch compatible | Fits Land Prides Quick-Hitch for easy one-person attachment and removal. |
| 3” Square frame tube | Heavy frame can handle 100 HP tractors. |
| Ball bearings | Self-aligning, sealed ball bearings. |
| 4 Adjustable front gang angles; 3 Adjustable rear gang angles | Vary the degree of aggressiveness on both front and rear gangs up to 21 degrees. |
| Gang adjustment handle | Easy adjustment of gang angles. |
| 4” x 3” Gang tube | The gang tube resists twisting due to 4” horizontal width. |
| 1-1/8” Square gang axles | Large axles can resist the high load put on them as the discs roll through the ground. |
| 20” or 22” Notched disc blades | Larger discs will penetrate harder ground. |
| 1/2” Thick bearing hangers | 1/2” Thick bearing hangers resist high torque. |
| Optional scrapers | Scrapers will clean the disc blades off which can plug up and/or keep the discs out of the ground due to mud build-up. Adjustable. |
Specifications
- Registration date: 2015
- Condition: New
- Fuel: Electric
- Drive: AWD
